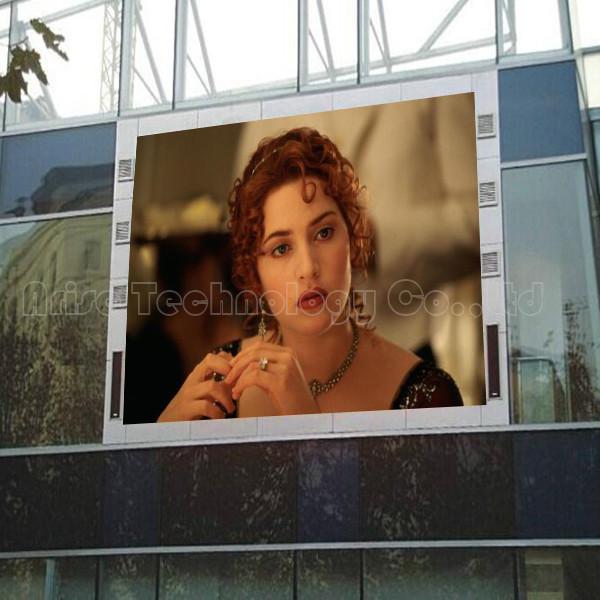

P16 Outdoor LED Display DIP346 Outdoor P16 LED Display Parameters（DIP)

Outdoor P16 LED Display Parameters（DIP)
Model	FO-16D
Parameters	Speci.
Pixel Pitch	16mm
Pixel Composition	1R1G1B
LED Type	DIP346
Display brightness	7500cd/m² (adjustable）
Color Temperature	2500K to 10000K
Viewing Angle	H: 120°; V:60°
Pixel Density	3906pixels/m²
Minimum Viewing Distance	≥16 M
Module Size	256mm×256mm.
Cabinet Size	W1024mm×H768mm×D180mm
Cabinet Weight	60 kg/cabinet
Cabinet Size	0.7864 m²
Cabinet Material	Iron
Cabinet Aspect Ratio	1:1
Cabinet Resolution	64×48 pixels
Grey Scale	16bit（high refresh)、14bit（common refresh）
Driving Mode	1/4 scan, constant current
Processing Depth	65536 scales
Colors	281.4 trillion
LED wave length	R: 620~630nm G: 520~535nm B: 465~475nm
Brightness Control	Manual/Automatic
Display contrast	5000:1
Frame Rate	50/60 Hz
Refresh Rate	3200 Hz（high refresh) 、1000 Hz(common refresh)
Input Voltage	110~220VAC±15%
Input Power Frequency	50~60 Hz
Max. Power Consumption	720W/cabinet
Ave. Power Consumption	220W/cabinet
Life Span	≥100,000 hours
Input Signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Communication Collection	CAT5 Cable: ≤140m; Multi-mode fiber ≤ 500m; Single mode fiber ≤ 20km )
Installation Method	Hanging /wall mounted/other customized installation methods.
Protection Scale	IP65
Operation Humidity	0℃~+45℃/10~90%RH
Storage Humidity	-10℃~+55℃/10~90%RH

Outdoor LED Display

FOB Price:	US $100 - 3,000 / Square Meter
Min.Order Quantity:	5 Square Meter/Square Meters
Supply Ability:	6000 Square Meter/Square Meters per Month
Port:	Shenzhen
Payment Terms:	T/T

Quick Details

Place of Origin:	Guangdong China (Mainland)	Brand Name:	ARISE	Model Number:	FO-P16D
Usage:	Outdoor	Tube Chip Color:	Full Color	Display Function:	Video
Pixels:	16mm	Brightness:	≥ 6500 nits	Weight:	70Kg /sqm
IP rate:	IP65	Life span:	≥100,000 hours	Module resolution:	16*8dots
Module Size:	256*128mm	Life span( half brightness):	≥100,000 hours	Colors:	16.7million
Pixel composition:	2Red, 1Green,1Blue	Physical Pixel Density:	3906dots/sqm

Packaging & Delivery

Packaging Detail: Wooden case/Flight case

Delivery Detail: Fast delivery time

Specifications

Largest Outdoor LED Display
1)Competitive price
2)Good Quality
3)IP65front, IP54 rear
4)Good after-sales service

LED Screen Outdoor
1.Main features:
1). Wide application field :
Outdoor Commercial advertising LED display screen, LED display screen for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display for rates showing,train & bus station LED display screen .
2). High brightness:6500cd/m2
Automatic or manual adjustment of the brightness of the display.
3).Top LED chip:
Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
6).The list of available Models of our outdoor LED display screen:
Outdoor:P10,P12,P16,P20,P25.

Technical traits

No.	Specifications
1.	Part No.	Outdoor P16 LED Display
2.	LED chip	Taiwan/Silan
3.	Physical Pixel Pitch	16mm
4.	Physical Pixel Density	3906dots/m²
5.	Pixel composition	2Red, 1Green,1Blue
6.	Moduel Size	256*128mm
7.	Moduel resolution	16*8dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall
10.	Brightness	≥ 6500 nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥120°, Vertical : ≥ 45°
13.	Viewing distance	10m -500m
14.	Soft Rubber Mask	To protect player and LED display itself .
15.	Scan frequency	≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	70Kg /sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Average power consumption	400W/sqm
23.	Peak power consumption	800W/sqm
24.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-20+60 Humidity:10%95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI
