dip346 p10 outdoor led display Outdoor Fix Installation LED Display ：P10(DIP)

Ask Lasest Price
Brand Name :	Arise
Model Number :	Outdoor P10 LED Display
Certification :	ISO CE UL ROHS
Price :	1
Delivery Time :	15 days
Payment Terms :	TT
Supply Ability :	5000 square

Add to Cart

Product Details
Company Profile

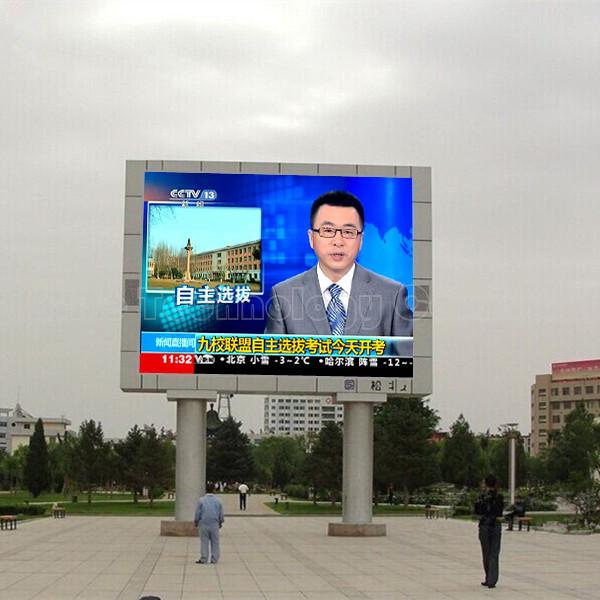

dip346 p10 outdoor led display Outdoor Fix Installation LED Display ：P10(DIP)

Outdoor P10 LED Display Parameters（DIP)
Model	FO-10D
Parameters	Speci.
Pixel Pitch	10mm
Pixel Composition	1R1G1B
LED Type	DIP346
Display brightness	8000cd/m² (adjustable）
Color Temperature	2500K to 10000K
Viewing Angle	H: 120°; V:60°
Pixel Density	10000 pixels/m²
Minimum Viewing Distance	≥10 M
Module Size	160mm×160mm.
Cabinet Size	W960mm×H960mm×D180mm
Cabinet Weight	50 kg/cabinet
Cabinet Size	0.9216 m²
Cabinet Material	Iron
Cabinet Aspect Ratio	1:1
Cabinet Resolution	96×96 pixels
Grey Scale	16bit（high refresh)、14bit（common refresh）
Driving Mode	1/4 scan, constant current
Processing Depth	65536 scales
Colors	281.4 trillion
LED wave length	R: 620~630nm G: 520~535nm B: 465~475nm
Brightness Control	Manual/Automatic
Display contrast	5000:1
Frame Rate	50/60 Hz
Refresh Rate	3200 Hz（high refresh) 、1000 Hz(common refresh)
Input Voltage	110~220VAC±15%
Input Power Frequency	50~60 Hz
Max. Power Consumption	750W/cabinet
Ave. Power Consumption	250W/cabinet
Life Span	≥100,000 hours
Input Signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Communication Collection	CAT5 Cable: ≤140m; Multi-mode fiber ≤ 500m; Single mode fiber ≤ 20km )
Installation Method	Hanging /wall mounted/other customized installation methods.
Protection Scale	IP65
Operation Humidity	0℃~+45℃/10~90%RH
Storage Humidity	-10℃~+55℃/10~90%RH

Arise Technology Co., Ltd Supply LED display all over the world with good quality and best prices.

Including: P1.2 P1.5 P1.8 P1.9 P2.5 P3 P4 P5 P6 P7.62 P8 P8.9 P10 P12 P16 P20 P25 P31.25 P50 full-color LED display screen, large LED advertising screen

Arise Technology Co., Ltd LED display products:

Outdoor Fix Installation LED Display ：P6、P8、P10(DIP)、P10(SMD)、P12、P16、P20、P25

Indoor Fix Installation LED Display ：P1.2 P1.8、P2.5、P3、P4、P5、P6、P7.62、P8、P10

Outdoor Rental LED Display ：P6、P6.94、P8、P8.9、P10

Indoor Rental LED Display ：P2.5、P3、P4、P5、P6、P7.62

Perimeter LED Display ：P12、P16

Freeform & creative display

Contact:

Arise Technology Co., Ltd Company introduction

Arise Technology Co., Ltd is a high-tech company dedicated in providing professional LED displays and comprehensive optoelectronic solutions.

Arise Technology owns strong execution, brilliant development strategies and programs, sustainable creation based on market demand. We spare no effort to provide customers with market-oriented innovative products with good reliability, suitable solutions and all-round service. Arise’s main products includes indoor and outdoor LED displays for fix installation, indoor and outdoor LED displays for rental business, stadium perimeter LED displays, and other special LED displays in accordance with customized requirements; LED display control system, related optoelectronic equipment, LED devices and components. We are ready to providing LED display solutions for oversea and domestic advertisement media, building advertising and lighting, municipal administration, hospital, hotel, bank, traffic, sports, entertainment, show, exhibition, etc.

We Arise Technology regards integrity in company staff, customers and suppliers as the enterprise foundations, market demands as the guide. We guarantee quality with profession and dedication and use enterprise culture to fill our brand. We keep striving, forging ahead, creating to provide customer with strong and unremitting support and backup.

dip346 p10 outdoor led display

P10 outdoor full color LED screen LED display

Pixel pitch	10mm
Module size	160160mm,320160mm
Module density	10,000dots/sqm
Module resolution	1616,3216
Pixel configuration	1R1G1B
Best viewing distance	From 10 to 150
Horizontal viewing angle	110°
Vertical viewing angle	90°
Maximum power consumption	Below 800W
Brightness	7500cd/sqm
Gray scale	More than 4096
Control method	Synchronization
Driving method	4Sconstant current
Frame frequency	60Hz
Refresh frequency	More than 300 Hz
Working voltage	AC220V±5%
IP grade	IP65
Working temperature	-20°C±50°C
MTBF	More than 5,000 hours
Life span	More than 100,000hours
Cabinet style	Waterproof cabinet
Cabinet size	W640H640D120mm
Cabinet weight	Less than 28kgs
