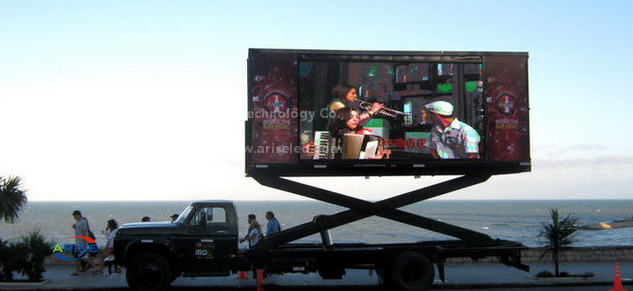

IP65 P8 Truck Mounted LED Screens Outdoor For Airport Station , DIP
7500CD
Arise Technology Co., Ltd
Email:gm@ariseled.com; Web:http://www.ariseled.com QQ:2329518805
Skype:ariseled
Specifications
Part Number | ARISELED-P8 |
Resolution | 32(H)×16(V) |
Pixel Pitch | 8mm |
LED Configuration | 1R1G1B - DIP |
Pixel Density | 15,625 pixels/ m² |
Module Size | 256×128mm |
Cabinet Size | 512mm×512mm |
Driving IC | MBI5024 |
Driving Method | 1/4 Scan, Constant Current |
Weight | 12KG/sq.m. |
Mechanical Ratings |
Hanging Weight Support | 2T |
Surface Flatness | Gap<0.5mm |
Optical Ratings |
Brightness | 7500CD |
View Angle | 120°/60° |
Gray Scale | 8bits input, correction with 14bits |
Display COLOR | 16.7M |
Brightness Adjustment | 0～100% 10 level |
Power Supply |
Operation Power | 90～260V 50～60Hz |
Max. Power Consumption | 1100W/ m² |
Average Power Consumption | 350W/ m² |
Control System |
Control Mode | Synchronous display with control PC by DVI |
Frame Update Frequency | 60～85Hz |
Screen Refresh Frequency | 300～1000Hz |
Gamma Correction | -5.0～+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental |
Operating Temperature | -20°～+60° |
Operating Humidity | 10～95% RH |
Operating Life | 100,000hours |
MTBF | 10,000hours |
Protection Level | IP65 |
Out of Control Rate | <0.01% |
Product Details:
Place of Origin: Shenzhen, China
Brand Name: ARISELED
Certification: CE,UL, ROHS, 3C, ISO,FCC
Model Number: CE, 3C , RoHS, ISO,FCC,UL
Payment & Shipping Terms:
Minimum Order Quantity: 5 sq.m.
Price: Price negotiable
Packaging Details: Plywood case /Flight case
Delivery Time: 15-35days
Payment Terms: 30% advance as deposit; the balance before shipping
Supply Ability: 10000 sq.m./month
Detailed Product Description
Moduel Size: 256×128mm Pixel Density: 15,625 Pixels/ M²
Brightness: 7500CD IP Grade: IP65
Display Color: 16.7million Tube Chip Color: Full Color
Gray Scale: 8bits Input, Correction With 14bits Pixels: 8mm
LED Configuration: 1R1G1B - DIP
Quick Detail:
1.Wide application & short ROI
2.High brightness
3.High fresh frequency
4.High contrast ratio :4000:1
Description:
1. Wide application field & short ROI time commercial advertising
LED display screen, Stadium perimeter LED display screen, Mobil
shopping mall LED display screen for logo showing, bank&stock
exchange LED display screen for rates showing, train & bus station
LED display screen, air port LED display screen, telecommunication
LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED
display screen system.
3.Clear vivid image quality
Even in direct, full-on sunlight to ensure you attract more
audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness
7000-nit brightness (for outdoor full color)(2000 nits brightness
for indoor full color)capacity throughout product lifetime of the
LED display screen.
5. Easy Installation & Using
easy & simple installation interface and user friendly software to
ensure the user friendly interface of the LED display screen system
Applications:Big plaza/Shopping mall
/Building/Highway/Traffic/Airport
