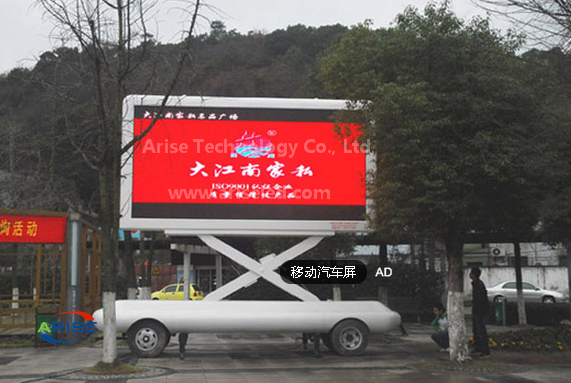

Outdoor P16 Truck Mounted LED Screens , High Definition Trailer
Mounted Led Screen
Arise Technology Co., Ltd
Email:gm@ariseled.com; Web:http://www.ariseled.com QQ:2329518805
Skype:ariseled
Specifications
Part Number | TeehoLED-P16 |
Resolution | 16(H)×8(V) |
Pixel Pitch | 16mm(Virtual:8mm) |
LED Configuration | 2R1G1B 1-BY-1 DIP |
Pixel Density | 3,906 pixels/ ㎡ |
Module Size | 256×128mm |
Cabinet Size | 1024×768mm, 768×768mm, etc. |
Driving IC | MBI5026 led & IC mounted to 2 PCB design |
Driving Method | Static State, Constant Current |
Weight | 58KG/sq.m. |
Mechanical Ratings |
Hanging Weight Support | 2T |
Surface Flatness | Gap<0.5mm |
Optical Ratings |
Brightness | >8,000cd/ ㎡ |
View Angle | 120°/60° |
Gray Scale | 8bits input, correction with 14bits |
Display COLOR | 16.7M |
Brightness Adjustment | 0～100% 10 level |
Power Supply |
Operation Power | 90～260V 50～60Hz |
Max. Power Consumption | 1200W/ ㎡ |
Average Power Consumption | 350W/ ㎡ |
Control System |
Control Mode | Synchronous display with control PC by DVI |
Frame Update Frequency | 60～85Hz |
Screen Refresh Frequency | 300～1000Hz |
Gamma Correction | -5.0～+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental |
Operating Temperature | -20°～+60° |
Operating Humidity | 10～95% RH |
Operating Life | 100,000hours |
MTBF | 5000hours |
Protection Level | IP65 |
Out of Control Rate | <0.02% |
Product Details:
Place of Origin: Shenzhen, China
Brand Name: ARISELED
Certification: CE,UL, ROHS, 3C, ISO,FCC
Model Number: CE, 3C , RoHS, ISO,FCC,UL
Payment & Shipping Terms:
Minimum Order Quantity: 5 sq.m.
Price: Price negotiable
Packaging Details: Plywood case /Flight case
Delivery Time: 15-35days
Payment Terms: 30% advance as deposit; the balance before shipping
Supply Ability: 10000 sq.m./month
Detailed Product Description
Moduel Size: 256×128mm Pixel Density: 3,906 Pixels/
Brightness: >8,000cd/ IP Grade: IP65
Display Color: 16.7million Tube Chip Color: Full Color
Gray Scale: 8bits Input, Correction With 14bits Pixels: 16mm
LED Configuration: 2R1G1B 1-BY-1 DIP
Quick Detail:
1.High definition led advertising display
2.Environment advertising display
3.Fast response
4.CE&RoHS
Description:
1.Wide application field&short ROI time:Commercial advertising
LED display, Stadium perimeter LED display,Mobile trailer LED panel
for mobile media,shopping mall LED panel for logo
showing,bank&stock exchange LED panel for rates
showing,train&bus station,air port,telecommunication LED panel
system for information showing and instruction.
2.High Contrast:7000:1,which is a very high level to ensure a vivid
image of our LED display screen system.
3. First-class LED chip: Supplied by Ni-chia of Japan to ensure the
long lifetime and high brightness of our LED screen system.
4.Clear vivid image quality even in direct, full-on sunlight to
ensure you attracts more audience to get short ROI of your LED
screen’s investment.
5.Long-term Brightness:7000-nit brightness( for outdoor full color)
(1200-2700 nits brightness for indoor full color)capacity
throughout product lifetime of the LED display.
Applications:Big plaza/Shopping mall
/Building/Highway/Traffic/Airport
