Wifi/3G Intelligent P4 P5 P6 P8 Lamppost Display Outdoor Street
Advertising Light Pole Led Display Lamppost Smart LED Digital
Screen
Arise Technology Co., Ltd
Features:
1. Intelligent control: with LAN, WIFI, 3G intelligent management
module inside, can control the screen as your convenient, change
the display content as you want
2. Saving time and labor: once the screen is installed
successfully, the advertising content can change at any time as
request, don't like the traditional static billboards need to be
dissambled frequently, save the working time and labor cost, and
control the advertising contents easily.
3.High waterproof IP level: with front IP65 and back IP54, good
waterproof, can be used outdoor with any weather
4. Easy maintenance: Side open and back maintenance for option, and
dot to dot maintenance, easy and quickly
5.SMD led encapsulation confirm the good uniformity and high
definition
6. Can be done with single side or double sides
Pixel Pitch | 4mm | 5mm | 6mm | 8mm |
LED Configuration | 1R1G1B SMD2121 | 1R1G1BSMD2727 | 1R1G1BSMD3535 | 1R1G1BSMD3535 |
Pixel Density | 62500dot/m2 | 40000dot/m2 | 27778dot/m2 | 15625dot/m2 |
Module Size | 256x128mm | 160x160mm | 192x192mm | 256x128mm |
Module Resolution | 64x32dot | 32x32dot | 32x32dot | 32x16dot |
Display Size | 768x1536mm | 800x1600mm | 768x1536mm | 768x1536mm |
Cabinet Size | 768x1740x80mm | 800x1850x80mm | 768x1740X80mm | 768x1740X80mm |
Cabinet Resolution | 192x384dot | 160x320dot | 128x256dot | 96x192dot |
Cabinet Weight | 55kg | 60kg | 55kg | 55kg |
IP Rating ( front/back) | IP65 | IP65 | IP65 | IP65 |
Scanning Mode | 16S | 16S | 8S | 8S |
Brightness Intensity | ≥2000CD/m2 | ≥5500CD/m2 | ≥7000CD/m² | ≥6500CD/m² |
Viewing Angle (H/V) | 120° | 120° | 120° | 120° |
View Distance | >4m | >5m | >6m | >8m |
Gray Scale | 14bit | 14bit | 14bit | 14bit |
Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
Max.Power Consumption | 720 W/m² | 800 W/m² | 900 W/m² | 1000 W/m² |
Ave.Power Consumption | 210 W/m² | 280 W/m² | 300 W/m² | 400 W/m² |
Refresh Frequency | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ |
Environmental | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
Brightness Adjustment | 0 - 100 levels adjustable |
Control Mode | Asynchronous system |
Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI |
Operation Power | AC100 / AC240 50 / 60HZ |
Operating Temperature | - 20℃~+50℃ |
Operating Humidity | 10~90% RH |
Operating Life | 100,000hours |
Flexible: Shorter lead time, multiple branding exposure and cost
effective.
Reachable: Reaching out the unreachable population

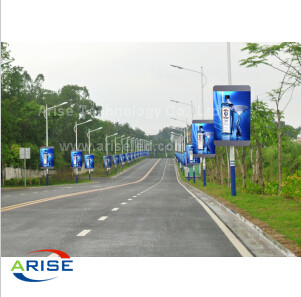

Bright: Clear LED Displays on lamp posts along the busiest roads
Arise Technology Co., Ltd. is a high-tech company dedicated in
providing professional LED displays and comprehensive
optoelectronic solutions.
Arise Technology owns strong execution, brilliant development
strategies and programs, sustainable creation based on market
demand. We spare no effort to provide customers with
market-oriented innovative products with good reliability, suitable
solutions and all-round service. Our main products includes indoor
and outdoor full color fixed installation LED display, indoor and
outdoor rental LED displays, LED Mesh/LED curtain displays, LED
advertising player displays, floor LED displays, stadium/perimeter
LED displays, creative LED displays, mobile LED displays, flexible
LED displays, transparent LED displays, high-resolution full color
LED display, customized LED displays, and the whole display system
and equipment. We are ready to providing LED display solutions for
oversea and domestic advertisement media, building advertising and
lighting, municipal administration, hospital, hotel, bank, traffic,
sports, entertainment, show, exhibition, etc.
We Arise Technology regard integrity in company staff, customers
and suppliers as the enterprise foundations, market demands as the
guide. We guarantee quality with profession and dedication and use
enterprise culture to fill our brand. We keep striving, forging
ahead, creating to provide customer with strong and unremitting
support and backup.
We Arise Technology also have more LED displays for your projects:
Category Pixel Pitch(mm)
1. Outdoor Fix Installation LED Display Series P4/ P5/ P6/ P6.67/
P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16
2. Outdoor Strip/Louver LED Display Series P15.625-15.625/
P15.625-31.25/ P31.25-31.25
3. Outdoor Rental LED display Series P3.9/ P4.8/ P5/ P6/ P6.25/
P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10
4. Indoor Fix Installation LED display Series P1.2/P1.56/P1.6/
P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/
P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10
5. Indoor Rental LED Display Series P2/ P2.5/ P3/ P3.125/ P3.75/
P3.91/ P4/ P4.81/ P5/ P6/
P6.25/ P6.4/ P7.62/ P8/ P10
6. Transparent LED Display Series P3.9-7.8/ P7.8-15.625/ P8/ P10
7. Floor LED Display Series P6.25/ P6.25 interactive floor LED
display /P8.9/ P10.4
8. Perimeter LED Display Series P6/ P8/ P10/ P12/ P16
9. LED Advertising Player/Kiosk LED Display Series P2.5/ P3/ P4/
P5/ P5.3/ P6
10. Taxi/Bus Mounted LED Display Series P4/ P5/ P6/ P7.62
11. LED Ball Display Series P3/ P4/ P5/ P6/ P7.62/ P8/ P10
12. Multiple creative LED displays and DJ booth LED displays for
clubs and stages.
• Stair LED displays: P6/ P6.67/ P7.62/ P10/ P16/ P18/ P20
• Led Street Screen: p4/p5/p6/p8
• LED Floor Tiles: P6.25/ P8.9/ P10.4
• Led Stage Screen-DJ screen: P3/ P4 /P5/ P6
• More customized LED displays.
We will be your best partner by providing you professional LED
display products and service and support from China production
base!! Should any LED display projects, please just feel free to
contact!
