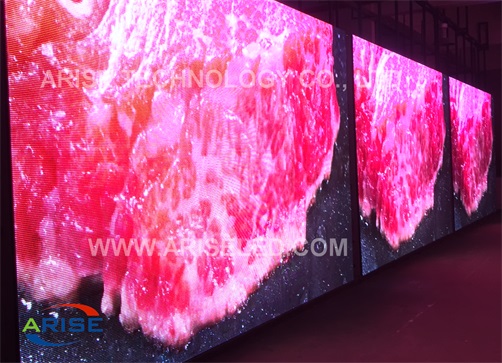

IP65 P10mm Outdoor LED Screens With H 140°/ V 140° Viewing
Angle,SMD 3 in 1 Outdoor LED Full Color Display
Arise Technology Co., Ltd
One-stop LED display manufacturere
Web:http://www.ariseled.com
QQ:1327078259 Skype:ariseled
http://i.youku.com/ariseled
Pixel Pitch | 10mm |
Module Size | 160*160mm |
Pixel Density | 10000/s.q.m |
Pixel composition | 1R1G1B |
LED Type | SMD |
Module Resolution | 16*16 |
Power Consumption of Module | 19W |
The Optimum Viewing Distance | 10m |
The Optimum Viewing Angle | 110° |
Maximum Power Consumption | 750W/ s.q.m |
Cabinet Size | 960*960mm |
Cabinet Resolution | 96*96 |
Cabinet Weight | 60KgWater-proof |
Display size | 3840*1920mm |
Cabinet arrayed | 4*2pc |
Maximum Power Consumption | 6700W/whole display |
Typical Power Consumption | 4000W/whole display |
Weight of whole display | 480KG |
Driving Method | 1/4 Scan Constant Current Driving |
Frame Frequency | ≥60Hz/s |
Refresh Rate | ≥1000Hz/s |
White Balance Luminance(CD/ s.q.m) | ≥6500cd/ s.q.m |
Operating Environment Temperature | -20℃—60℃ Optional |
Operating Voltage | 220V±10% or 110V±10% |
Grey Scale | Display Colors≥65.7trillion color(Synchronized) |
Brightness Adjustment | 1024 grades of each colorR.G.Bcan be adjusted |
manually and 16 levels of each color can be adjusted automatically |
Input Signal | RF,S-Video RF, S-Vido, RGB, RGBHV, YUV etc. |
Control System | Sent card+DVI display card+receive card |
Average No Failure Time | >5000 hours |
Life-span | >100000 hours |
Out-of Control rate | <0.0001 |
Transmiting Distance | Internet cable:< 100m |
Features:
1. With black body SMD, both brightness & contrast can be
guaranteed at the same time.
2. Special louver design allows outdoor daytime use & improves
contrast without sacrifice viewing angle,and ideal solution for any
indoor/outdoor applications.
3. Most advanced surface mount technology, the location & amount of
paste are controlled and monitored by the machine, the
nonconforming paste printing will be ticked out before going to the
next process, so the overall yield-rate are higher.
Arise Technology Co., Ltd. is a high-tech company dedicated in
providing professional LED displays and comprehensive
optoelectronic solutions.
Arise Technology owns strong execution, brilliant development
strategies and programs, sustainable creation based on market
demand. We spare no effort to provide customers with
market-oriented innovative products with good reliability, suitable
solutions and all-round service. Our main products includes indoor
and outdoor full color fixed installation LED display, indoor and
outdoor rental LED displays, LED Mesh/LED curtain displays, LED
advertising player displays, floor LED displays, stadium/perimeter
LED displays, creative LED displays, mobile LED displays, flexible
LED displays, transparent LED displays, high-resolution full color
LED display, customized LED displays, and the whole display system
and equipment. We are ready to providing LED display solutions for
oversea and domestic advertisement media, building advertising and
lighting, municipal administration, hospital, hotel, bank, traffic,
sports, entertainment, show, exhibition, etc.
We Arise Technology regard integrity in company staff, customers
and suppliers as the enterprise foundations, market demands as the
guide. We guarantee quality with profession and dedication and use
enterprise culture to fill our brand. We keep striving, forging
ahead, creating to provide customer with strong and unremitting
support and backup.
We Arise Technology also have more LED displays for your projects:
Category Pixel Pitch(mm)
1. Outdoor Fix Installation LED Display Series P4/ P5/ P6/ P6.67/
P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16
2. Outdoor Strip/Louver LED Display Series P15.625-15.625/
P15.625-31.25/ P31.25-31.25
3. Outdoor Rental LED display Series P3.9/ P4.8/ P5/ P6/ P6.25/
P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10
4. Indoor Fix Installation LED display Series P1.2/P1.56/P1.6/
P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/
P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10
5. Indoor Rental LED Display Series P2/ P2.5/ P3/ P3.125/ P3.75/
P3.91/ P4/ P4.81/ P5/ P6/
P6.25/ P6.4/ P7.62/ P8/ P10
6. Transparent LED Display Series P3.9-7.8/ P7.8-15.625/ P8/ P10
7. Floor LED Display Series P6.25/ P6.25 interactive floor LED
display /P8.9/ P10.4
8. Perimeter LED Display Series P6/ P8/ P10/ P12/ P16
9. LED Advertising Player/Kiosk LED Display Series P2.5/ P3/ P4/
P5/ P5.3/ P6
10. Taxi/Bus Mounted LED Display Series P4/ P5/ P6/ P7.62
11. LED Ball Display Series P3/ P4/ P5/ P6/ P7.62/ P8/ P10
12. Multiple creative LED displays and DJ booth LED displays for
clubs and stages.
• Stair LED displays: P6/ P6.67/ P7.62/ P10/ P16/ P18/ P20
• Led Street Screen: p4/p5/p6/p8
• LED Floor Tiles: P6.25/ P8.9/ P10.4
• Led Stage Screen-DJ screen: P3/ P4 /P5/ P6
• More customized LED displays.
