High Brightness SMD P10.416mm LED Mesh Screen LED Video Display Panels,ARISELED

Ask Lasest Price
Brand Name :	ARISE LED
Certification :	ISO CE UL CCC FCE
Model Number :	High Brightness SMD P10.416mm LED Mesh Screen LED Video Display Panels
Price :	1USD
Delivery Time :	7DAY
Payment Terms :	TT/FOB
Supply Ability :	10000SQM/MONTH

Add to Cart

Product Details
Company Profile

High Brightness SMD P10.416mm LED Mesh Screen LED Video Display Panels,ARISELED

High Brightness SMD P10.416mm LED Mesh Screen LED Video Display Panels

Indoor Rental LED Mesh Screen P10.4 P12.5 P20 Media, Rental, Stage, Indoor Mesh, Indoor LED Display

Arise Technology Co., Ltd

Web:http://www.ariseled.com

QQ:1327078259 Skype:ariseled

http://i.youku.com/ariseled

Pitch/mm	P10.4	P12.5	P20
Density of pixel/(dots/m2)	9246	6400	2500
Pixel composition	1R1G1B	1R1G1B	1R1G1B
Led encapsulation	SMD 3528	SMD 3528	SMD 3528
Driving method	1/5 scan	1/8 scan	1/4 scan
View angle / °	V140/H140	V140/H140	V140/H140
Average power consumption/W/M2	240W	120W	100W
Max power consumption/W/M2	490W	240W	200W
Module size/mm	208*416mm	200*-400mm	320*320mm
Size of cabinet/mm	416*832mm	400*800mm	960*640mm
Refresh rate Hz/S	≥2000	≥2000	≥2000
Luminance of white balance	≥1400nits	≥700nits	≥500nits
Weight of cabinet	6KG	6KG	6KG
Operation of Environmental Temperature/°C	-20 ℃ ~ 50℃
IP rating	IP30
Working vlotage	110-220 VAC/+/- 10% ; 50~60HZ
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system	linsn(sending card,receiving cards and Hubs); Nova
Average of non-failure life	>50,000 hours
Life span	>100,000hours
Functionaless dot rate	<0.0001

Product Features:

The design has the features of "light", "thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.

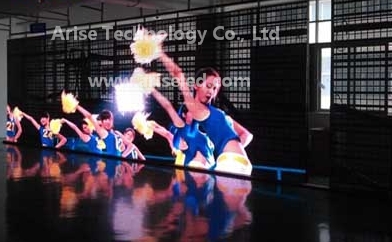

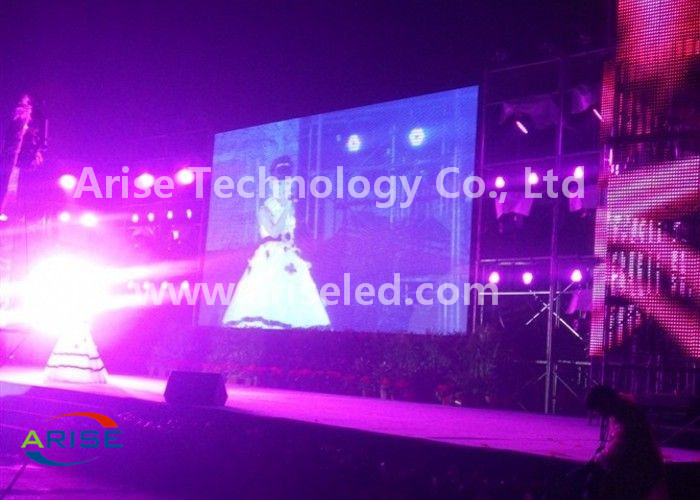

This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.

The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.

The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.

High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.

We Arise Technology regard integrity in company staff, customers and suppliers as the enterprise foundations, market demands as the guide. We guarantee quality with profession and dedication and use enterprise culture to fill our brand. We keep striving, forging ahead, creating to provide customer with strong and unremitting support and backup.

Arise Technology also have more LED displays for your projects:

•Outdoor fix installation LED displays: P4/P4.8/P5/ P6/ P6.67/ P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16/ P20/ P25/ P31.25/ P40/ P50;

•Indoor fix installation LED displays: P1.6/ P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/ P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10

•Outdoor Rental LED displays: P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10

•Indoor Rental LED displays: P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/ P4/ P4.81/ P5/ P6/ P6.25/ P6.4/ P7.62/ P8/ P10

•Perimeter LED Displays: P6/ P8/ P10/ P12/ P12.5/ P16

•LED Advertising Player/Kiosk LED displays: P2.5/ P3/ P4/ P5/ P5.3/ P6

•Stair LED displays: P6/ P6.67/ P7.62/ P10/ P16/ P18/ P20

•Transparent LED display: p3.9/p7.81/p8/p10

•Led Street Screen: p4/p5/p6/p8

•LED Floor Tiles: P6.25/ P8.9/ P10.4

•LED ball: P3/ P4/ P5/ P6/ P7.62/ P8/ P10

•Led Stage Screen-DJ screen: P3/ P4 /P5/ P6

•Taxi LED banner signs: P4/ P5/ P6

•Bus LED banner signs: P5/ P6/ P7.62

•More customized LED displays.

We will be your best partner by providing you professional LED display products and service and support from China production base!! Should any LED display projects, please just feel free to contact!
