P20 Outdoor Led Display OUTDOOR P20 DIP LED Screen
Arise Technology Co., Ltd. One-stop LED display manufacturere
Website: www.ariseled.com
Skype: ariseled
Email: info@ariseled.com
http://i.youku.com/ariseled
FOB Price:US $650 -3000 / Square Meter
Min.Order Quantity:1 Square Meter/Square Meters
Supply Ability:5000 Square Meter/Square Meters per Month
Port:Shenzhen
Payment Terms:T/T
Packaging & Delivery
Packaging Detail: wooden case packing: 1330*550*1010mm,two
1280*960mm cabinets per carton.
Delivery Detail: 20-30days
Specifications
P20 led panel outdoor large screen display
1)super bright
2)waterproof
3)easy installation
4)CE,RoHS
Advantages of Full Color LED Advertising Display:
1) High brightness, at least 6000cd/sqm, adjustable to be used both
day and night according to your demand.
2) High resolution with a large viewing angle, about 120°
horizontally and 50° vertically.
3) High Frame Frequency(60HZ) and Refresh Rate(Average 1000Hz,
Maximum 3000Hz)
4) Waterproof and dust-proof with the protection level being IP65.
5) Easily to be installed, dismantled, and no mass maintenance
task.
6) 10 years’ lifespan with 2 years' warranty period.
7) Low power consumption.

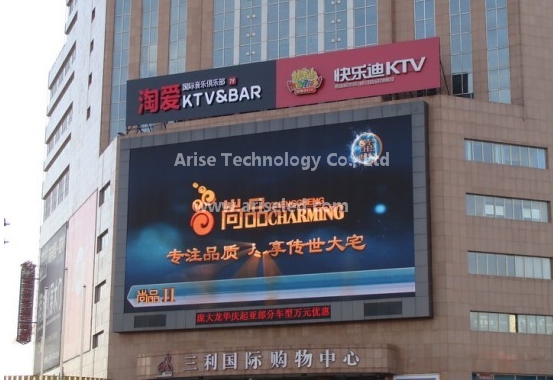

P20 outdoor big led panel for advertising
Our company provides on-site product installation, debugging and
maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as
possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen
body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be
solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will
deploy some spare parts such as power and chips etc.
Outdoor P20 LED Display Parameters(DIP) |
Model | FO-20D |
Parameters | Speci. |
Pixel Pitch | 20mm |
Pixel Composition | 1R1G1B |
LED Type | DIP346 |
Display brightness | 7500cd/m² (adjustable) |
Color Temperature | 2500K to 10000K |
Viewing Angle | H: 120°; V:60° |
Pixel Density | 2500pixels/m² |
Minimum Viewing Distance | ≥20 M |
Module Size | 320mm×160mm. |
Cabinet Size | W1280mm×H960mm×D180mm |
Cabinet Weight | 75 kg/cabinet |
Cabinet Size | 1.2288 m² |
Cabinet Material | Iron |
Cabinet Aspect Ratio | 1280:960 |
Cabinet Resolution | 64×48 pixels |
Grey Scale | 16bit(high refresh),14bit(common refresh) |
Driving Mode | 1/4 scan, constant current |
Processing Depth | 65536 scales |
Colors | 281.4 trillion |
LED wave length | R: 620~630nm G: 520~535nm B: 465~475nm |
Brightness Control | Manual/Automatic |
Display contrast | 5000:01:00 |
Frame Rate | 50/60 Hz |
Refresh Rate | 3200 Hz(high refresh) ,1000 Hz(common refresh) |
Input Voltage | 110~220VAC±15% |
Input Power Frequency | 50~60 Hz |
Max. Power Consumption | 580W/cabinet |
Ave. Power Consumption | 180W/cabinet |
Life Span | ≥100,000 hours |
Input Signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Communication Collection | CAT5 Cable: ≤140m; |
Multi-mode fiber ≤ 500m; Single mode fiber ≤ 20km ) |
Installation Method | Hanging /wall mounted/other customized installation methods. |
Protection Scale | IP65 |
Operation Humidity | 0℃~+45℃/10~90%RH |
Storage Humidity | -10℃~+55℃/10~90%RH |
Arise Technology Co., Ltd. is a high-tech company dedicated in
providing professional LED displays and comprehensive
optoelectronic solutions.
Arise Technology owns strong execution, brilliant development
strategies and programs, sustainable creation based on market
demand. We spare no effort to provide customers with
market-oriented innovative products with good reliability, suitable
solutions and all-round service. Our main products includes indoor
and outdoor full color fixed installation LED display, indoor and
outdoor rental LED displays, LED Mesh/LED curtain displays, LED
advertising player displays, floor LED displays, stadium/perimeter
LED displays, creative LED displays, mobile LED displays, flexible
LED displays, transparent LED displays, high-resolution full color
LED display, customized LED displays, and the whole display system
and equipment. We are ready to providing LED display solutions for
oversea and domestic advertisement media, building advertising and
lighting, municipal administration, hospital, hotel, bank, traffic,
sports, entertainment, show, exhibition, etc.Aisre LED displays are
approved by CE, RoHS and FCC certifications.
We Arise Technology regard integrity in company staff, customers
and suppliers as the enterprise foundations, market demands as the
guide. We guarantee quality with profession and dedication and use
enterprise culture to fill our brand. We keep striving, forging
ahead, creating to provide customer with strong and unremitting
support and backup.
We Arise Technology also have more LED displays for your projects:
•Outdoor fix installation LED displays: P4/P4.8/P5/ P6/ P6.67/ P8/
P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16/ P20/ P25/ P31.25/ P40/ P50;
•Indoor fix installation LED displays: P1.6/ P1.667/ P1.8/ P1.875/
P1.9/ P2/ P2.5/ P3/ P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10
•Outdoor Rental LED displays: P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/
P6.94/ P7.8/ P8/ P8.9/ P10
•Indoor Rental LED displays: P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/
P4/ P4.81/ P5/ P6/ P6.25/ P6.4/ P7.62/ P8/ P10
•Perimeter LED Displays: P6/ P8/ P10/ P12/ P12.5/ P16
•LED Advertising Player/Kiosk LED displays: P2.5/ P3/ P4/ P5/ P5.3/
P6
•Stair LED displays: P6/ P6.67/ P7.62/ P10/ P16/ P18/ P20
•Transparent LED display: p3.9/p7.81/p8/p10
•Led Street Screen: p4/p5/p6/p8
•LED Floor Tiles: P6.25/ P8.9/ P10.4
•LED ball: P3/ P4/ P5/ P6/ P7.62/ P8/ P10
•Led Stage Screen-DJ screen: P3/ P4 /P5/ P6
•Taxi LED banner signs: P4/ P5/ P6
•Bus LED banner signs: P5/ P6/ P7.62
•More customized LED displays.
We will be your best partner by providing you professional LED
display products and service and support from China production
base!! Should any LED display projects, please just feel free to
contact!
