PH3,PH4,PH5,PH6,P8,P10,Outdoor Pole LED Display,Street light pole LED display,ariseled.com

Ask Lasest Price
Brand Name :	ARISE
Certification :	ISO CE FCC ROHS
Model Number :	PH3,PH4,PH5,PH6,P8,P10,Outdoor Pole LED Display,Street light pole LED display,ariseled.com
Price :	1
Delivery Time :	7
Payment Terms :	TT
Supply Ability :	20000sqm/year

Add to Cart

Product Details
Company Profile

PH3,PH4,PH5,PH6,P8,P10,Outdoor Pole LED Display,Street light pole LED display,ariseled.com

PH3,PH4,PH5,PH6,PH8,PH10,Outdoor Pole LED Display,Street light pole LED display,Arise Technology Co., Ltd.

www.ariseled.com,info@ariseled.com

Cluster management can be achieved using internet, Wi-Fi and 3G. This makes controlling each LED display individually.

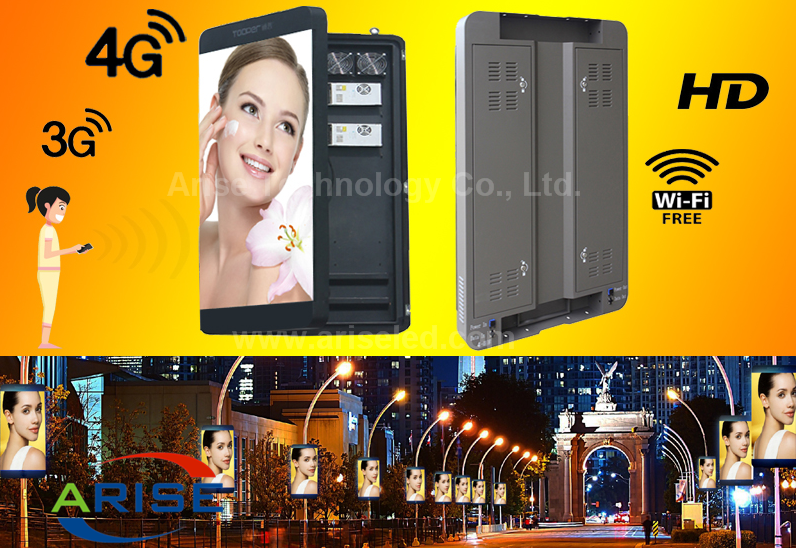

Pole LED Display for Road Advertising features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost.Arise Technology Co., Ltd.

www.ariseled.com,info@ariseled.com

LED Lamp
Type	SMD2727
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch	5mm
Module Size	160×160mm
Module Resolution	32×32=1024(Dots)
Module Weight	0.4kg
LED Cabinet
Display Dimension(W*H)	960×1440mm
The entire screen size(WHD)	960×1600×130mm
Resolution W*H(dots/set)	192×288
The entire screen resolution	55296dots
Cabinets Material	Aluminum
Frame Frequency	no less than 60 frame/sec
Cabinet Weight	85kg
Input Voltage	AC110-220V±10%,50/60Hz
Brightness	≥7000cd/㎡
Output Voltage	DC-5V,40A/60A/80A
Viewing Angle	120(Horizontal),120(Vertical)
Grey Scale Levels	16bit
Nearest Viewing Distance	6m
Color Processing	R(1024)×G(1024)×B(1024)
Total Power Consumption (Max)	1600W/H
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Average)	450W/H
MTBF( mean time between failures)	5000 hours
Display Function	Text,Graphics,Video
Life-span	100,000 hours
Refresh Rate	≥1000Hz
Protection Level(front/back)	IP66/IP54
Working Temperature	-30℃~50℃
Malfunction Dot Rate	less than 0.0001
Humidity	15%~85%
Drive Mode/Driver Position	Constant driving 1/8 Scan,Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 7, XP and Vista
Software	Led show ( HSTV-ECSR )
Communication Type	WIFI, Net cable,3G(Sold separately)
Language	Chinese,English
Certificate	CE,ROHS,FCC,ISO9001,TUV
Control Card Input	RJ45,HDMI,USB

Arise Technology Co., Ltd.

www.ariseled.com,info@ariseled.com

Arise Technology Co., Ltd.

is a hightech company dedicated in providing professional LED displays & comprehensive optoelectronic solutions.

Arise Technology owns strong execution, brilliant development strategies and programs, sustainable creation based on market demand. We spare no effort to provide customers with market-oriented innovative products with good reliability, suitable solutions and all-round service. Arise’s main products includes outdoor and indoor full color LED display, outdoor and indoor rental LED displays, stadium/perimeter LED displays, LED Mesh/LED curtain displays, creative LED displays, LED banner signs, high-resolution full color LED display, creative LED displays,customized LED displays, and the whole display system and equipment. We are ready to providing LED display solutions for oversea and domestic advertisement media, building advertising and lighting, municipal administration, hospital, hotel, bank, traffic, sports, entertainment, show, exhibition, etc.

We Arise Technology regards integrity in company staff, customers and suppliers as the enterprise foundations, market demands as the guide. We guarantee quality with profession and dedication and use enterprise culture to fill our brand. We keep striving, forging ahead, creating to provide customer with strong and unremitting support and backup.
