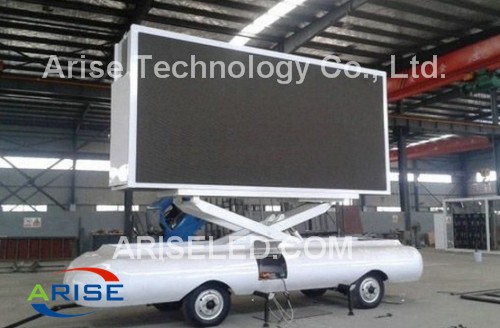

    Truck Mounted LED Display P10mm P5 P4 P6 P8 P10 P12 outdoor Truck Mobile LED Display Digit

    Ask Lasest Price
    Brand Name : ARISE
    Certification : ISO CE FCC ROHS
    Model Number : Truck Mounted LED Display P10mm P5 P4 P6 P8 P10 P12 outdoor Truck Mobile LED Display Digital Billboa
    Price : 1
    Delivery Time : 7
    Payment Terms : TT
    Supply Ability : 10000SQM/MONTH
    • Product Details
    • Company Profile

    Truck Mounted LED Display P10mm P5 P4 P6 P8 P10 P12 outdoor Truck Mobile LED Display Digit

    Truck Mounted LED Display P10mm P5 P4 P6 P8 P10 P12 outdoor Truck Mobile LED Display Digital Billboard

    Arise Technology Co., Ltd. One-stop LED display manufacturere

    Website: www.ariseled.com

    Skype: ariseled;

    Https://www.facebook.com/Arise-Technology-Co-Ltd-388635868143638/



    Product Description

    1.It can move to anywhere you want

    2.Multiple application for commercial advertising,events

    3.Ideal advertising in busy streets,intersections,shows,concerts,sporting events,granding opening etc.

    4.Customized size and fast delivery

    Specification

    Item

    Technical Specifications

    Pixel Pitch

    10mm

    LED Configuration

    DIP346 (1R1G1B)/SMD 3-in-1

    Pixel Density

    10000 pixels/sq.m

    Module Size

    160mm*160mm/320mm*160mm

    Module Resolution

    16pixel*16pixel/32pixel*16pixel

    Cabinet Size

    960mm*960mm

    Cabinet Resolution

    96pixels*96pixels

    Cabinet Material

    Iron/Aluminum

    Cabinet weight

    48kg/sqm or 38kg/sqm

    Brightness

    7000~8000cd/sqm

    Colour temperature

    3500K-9500K(adjustable)

    Viewing Angle

    H:120°/V:60°/120°

    Brightness Uniformity

    ≥97%

    Brightness Adjustment

    Manual/Auto/Programmable

    Ave. Power consumption

    200 W/sqm,300W/sqm

    Max. Power consumption

    600W/sqm,800W/sqm

    Input Voltage

    AC220V/50HZ or AC110V/60HZ (±10%)

    Output Voltage

    5V,40A

    Best Viewing Distance

    10m~200m

    Contrast ratio

    5000:01:00

    Frame rate

    50/60 Hz/sec

    Refresh rate

    ≥1200Hz

    Grey scale levels

    R(256bit) x G(256bit) x B(256bit)

    Display Colors

    R(1024) x G(1024) x B(1024)

    Protection Level

    IP65

    Life-span

    100,000 hours

    MTBF

    10,000 hours

    Malfunction dot rate

    < 0.0001

    Storage Temp/Humidity

    -30~+60℃/10~90%RH

    Operating Temp/Humidity

    -20~+50℃/10~90%RH

    Drive Mode

    1/4 scan,1/2 scan

    Control System

    Synchronous/Asynchronous/Wifi/3G Wireless for choice
