Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display

    Buy cheap Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display from wholesalers

    Buy cheap Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display from wholesalers
    • Buy cheap Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display from wholesalers

    Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display

    Ask Lasest Price
    Brand Name : ARISE
    Certification : ISO CE FCC ROHS
    Model Number : Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display
    Price : 1
    Delivery Time : 7
    Payment Terms : TT
    Supply Ability : 20000sqm/year
    • Product Details
    • Company Profile

    Stadium sports led advertising display P5 P6 P8 P10 P12 P16 P20 P25,Stadium LED display

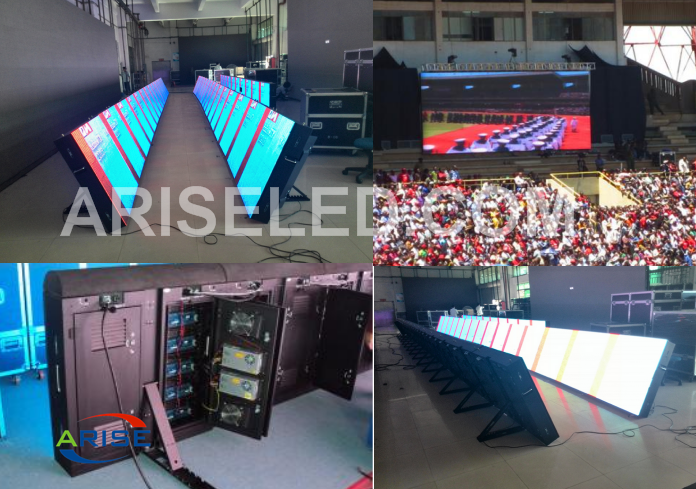

    P5 P6 P8 P10 P12 P16 Indoor outdoor Sport Perimeter Stadium LED display

    Full color RGB P20 P10 P12 P16 football perimeter led display for stadium sports led advertising display


    Arise Technology Co., Ltd. One-stop LED display manufacturere

    Website: www.ariseled.com

    Skype: ariseled;

    Email: info@ariseled.com;

    Mobile/WhatsApp/WeChat: 008613620209526

    Https://www.facebook.com/Arise-Technology-Co-Ltd-388635868143638/

    http://i.56.com/ariseled

    http://i.youku.com/ariseled


    1. Show function(advertising, such as Nike, Coca cola,etc)

    2. Function of time and score(live showing the score)

    3. Information processing function

    4. Emergency treatment function



    Pixel pitch

    16mm

    Module size

    256×128mm

    Pixel configuration

    1R1G1B

    Module resolution

    16×8dots

    View angle

    110°/55°

    Pixel density

    3,906dots/m²

    LED encapsulation

    DIP346

    Refresh rates

    >3000Hz

    Driving Method

    static,

    Max power

    700w/m²

    constant current

    consumption

    Brightness

    >7500nits

    Average power

    350w/m²

    consumption

    Working voltage

    AC110/220V

    Working temp

    -20°C to +60°C

    Best viewing distance

    >12M

    Working humidity

    10%~90%

    LED parameters

    R:625nm±5.0nm

    MTBF

    >5000 hours

    IV:1400-1500mcd

    G:525nm±2.5nm

    Gray level

    RGB/8192/14bit

    IV:2500-2800mcd

    B:470nm±2.5nm

    Lifespan

    >100,000 hours

    IV:600-650mcd


    Packaging & Shipping

    1.We can offer any kinds of the standard & customized package for you/ such as: Flight case/ wooden case & paper carton. We can also help you print your logo on your package case & also the product itself.

    2.We Provide Drop shipping Service. In order to ensure you receive your order tax free upon import/ we declare lower value.

    3. For Regular standard cabinet orders/ we can ship out in 1-2 working days after receiving your sample confirmation and payment; for big customized OEM Order: we need longer time/ around 15-25 working days after receiving your sample confirmation.


    After-sale service

    1. Lifetime free maintenance and upgrade.

    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

    3. Customer satisfaction tracking report.

    4. Free technician training.

    5. Full set of documents free of charge/ which including installation guidance/ software operation manual/ easy maintenance manual and control system software CD and so on.


    Warranty:

    1.We will provide a sum of spare parts to you together with the shipment(the details are as above)/ it included like leds/ power supply/ modules/ cables…and so on/ and it’s enough for the replacement within 2 years.

    2.We will provide two years warranty for our products. That means two years of factory labor and components is provided for free/ however the customer should pay for the round shipping cost for broken parts.

    3. For the technical support/ we will send the installation drawings/ user manual after the order is confirmed/ and we can offer the free training for your technician in our factory until he can manage it well.

    4. For the installation/ if you need/ we can send an engineer to your country to help & instruct the installation/ but your side need to pay for the round tickets and accommodation.

    5. For future service/ if you meet any problems/ our overseas engineer will service you online or by phone in 7x24 hours.

    This is our LED display category from Arise Technology Co., Ltd. Thanks for your attention.

    Category

    Pixel Pitch(mm)

    1. Outdoor Fix Installation LED Display Series

    P4/ P5/ P6/ P6.67/ P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16

    2. Outdoor Strip/Louver LED Display Series

    P15.625-15.625/ P15.625-31.25/ P31.25-31.25

    3. Outdoor Rental LED display Series

    P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10

    4. Indoor Fix Installation LED display Series

    P1.2/P1.56/P1.6/ P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/


    P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10

    5. Indoor Rental LED Display Series

    P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/ P4/ P4.81/ P5/ P6/


    P6.25/ P6.4/ P7.62/ P8/ P10

    6. Transparent LED Display Series

    P3.9-7.8/ P7.8-15.625/ P8/ P10

    7. Floor LED Display Series

    P6.25/ P6.25 interactive floor LED display /P8.9/ P10.4

    8. Perimeter LED Display Series

    P6/ P8/ P10/ P12/ P16

    9. LED Advertising Player/Kiosk LED Display Series

    P2.5/ P3/ P4/ P5/ P5.3/ P6

    10. Taxi/Bus Mounted LED Display Series

    P4/ P5/ P6/ P7.62

    11. LED Ball Display Series

    P3/ P4/ P5/ P6/ P7.62/ P8/ P10

    12. Multiple creative LED displays and DJ booth LED displays for clubs and stages.
